WordPress, renaming an established custom ACF block

TL;DR shortlist

• Backups! Always ensure you’ve done so, on every environment.
• Rename block directory & PHP file, then update block.json.
• Edit ACF Field Group.
• Run MySQL commands to update the database.
• Optional – Allowed Block Types
  If using allowed_block_types_all hook, update its reference in the list.
• Optional – SASS/CSS
  If using external SASS for styling, update .scss file names (for consistency.)

Step 01. The block directory

You’ll have different file structures to the examples below, but you’ll get the general idea.

Renaming the Directory & PHP file

…/themes/my-theme/blocks/
└── my-old-silly-name/
    ├── block.json
    └── my-old-silly-name.php

…/themes/my-theme/blocks/
└── my-new-name/
    ├── block.json
    └── my-new-name.php

If you include styles directly as part of your block see the Update Styles section below.

Update the block.json.

Before;

{
  "apiVersion": 3,
  "name": "acf/my-old-silly-name",
  "title": "My Old Silly Name",
  "description": "My Old Silly Name Block.",
  …
  "acf": {
    "renderTemplate": "my-old-silly-name.php",
    …
  }
}

After;

{
  "apiVersion": 3,
  "name": "acf/my-new-name",
  "title": "My New Name",
  "description": "My New Name Block.",
  …
  "acf": {
    "renderTemplate": "my-new-name.php",
    …
  }
}

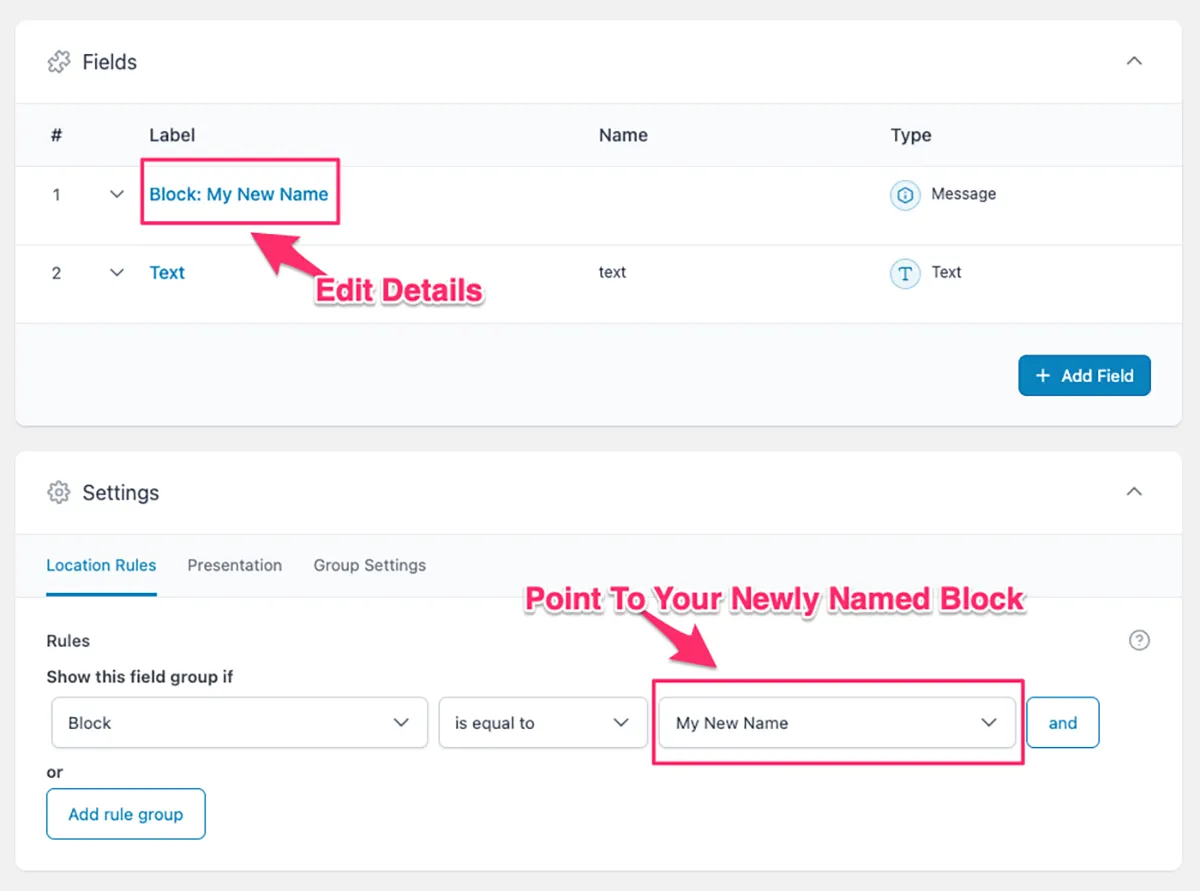

Step 02. Edit ACF Field Group

• Update any labels etc. under Fields.
• Select the newly named block from the dropdown list under Location Rules.

Step 03. Update the database

This part is a bit trickier. First you need to establish what syntax needs to be updated.

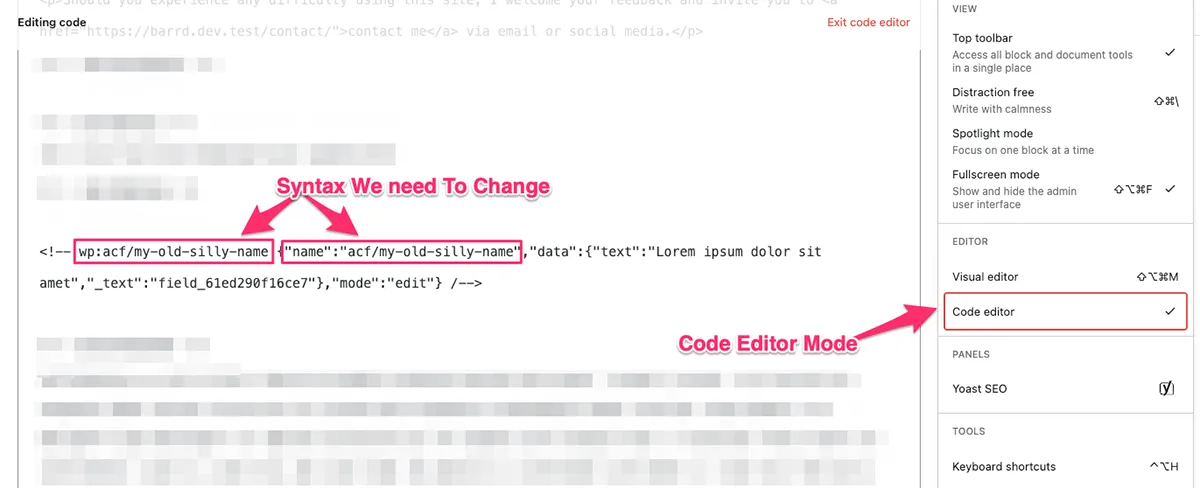

Find a post that contains the block you want to rename. Switch to Code editor mode (see image above) and find a reference to your block. An example;

# Single line version
<!-- wp:acf/my-old-silly-name {"name":"acf/my-old-silly-name","data":{"text":"Lorem ipsum dolor sit amet","_text":"field_61ed290f16ce7"},"mode":"edit"} /-->

# Multi-line version (for clarity)
<!--
  wp:acf/my-old-silly-name
    {
      "name":"acf/my-old-silly-name",
      "data":
        {
          "text":"Lorem ipsum dolor sit amet",
          "_text":"field_61ed290f16ce7"
        },
      "mode":"edit"
    }
  /
-->

The two points of interest that we need to search for and replace;

wp:acf/my-old-silly-name

"name":"acf/my-old-silly-name"

They look similar and share some of the same syntax but we’ll change them separately.

WP-CLI to the rescue

Following are the WP-CLI commands to run in sequence;

# Command one
wp search-replace 'wp:acf/my-old-silly-name' 'wp:acf/my-new-name' wp_posts --include-columns=post_content

# Command two
wp search-replace '"name":"acf/my-old-silly-name"' '"name":"acf/my-new-name"' wp_posts --include-columns=post_content

# Command three
wp cache flush

1. Search for wp:acf/my-old-silly-name and replace with wp:acf/my-new-name.
2. Search for "name":"acf/my-old-silly-name" and replace with "name":"acf/my-new-name".
3. Flush the cache.

Step 04. Optional extras…

Depending on your setup you may need to ensure that other features are updated, in my case that involved…

Update Allowed Block Types

I use the allowed_block_types_all WordPress hook which covers Core, ACF & any Third Party blocks used in my theme. If you don’t use this method, you can ignore this.

Update SASS/CSS file names (.scss/.css)

For the sake of consistency I updated the external SASS files associated with the newly named blocks e.g. ../blocks/my-new-name/ is now linked with ../src/sass/blocks/_my-new-name.scss.

If you include styles via block.json e.g.

{
  "name": "acf/my-old-silly-name",
  "style": [ "file:./my-old-silly-name.css" ]
  …
}

… just update the .css file name instead.

{
  "name": "acf/my-new-name",
  "style": [ "file:./my-new-name.css" ]
  …
}

Final thoughts

I use custom ACF blocks and the WordPress editor in a very opinionated way, especially around styling. If you ignore that part, all the rest is actually applicable to almost any ACF blocks API v3 setup.

Of course the best thing to do is name them correctly in the first place. 🙃
